Advanced EGS002 Pure Sine Wave Inverter Driver Module – Powerful EG8010 & IR2110 High-Performance Controller

EGS002 Pure Sine Wave Inverter Driver Module – EG8010 & IR2110 Based

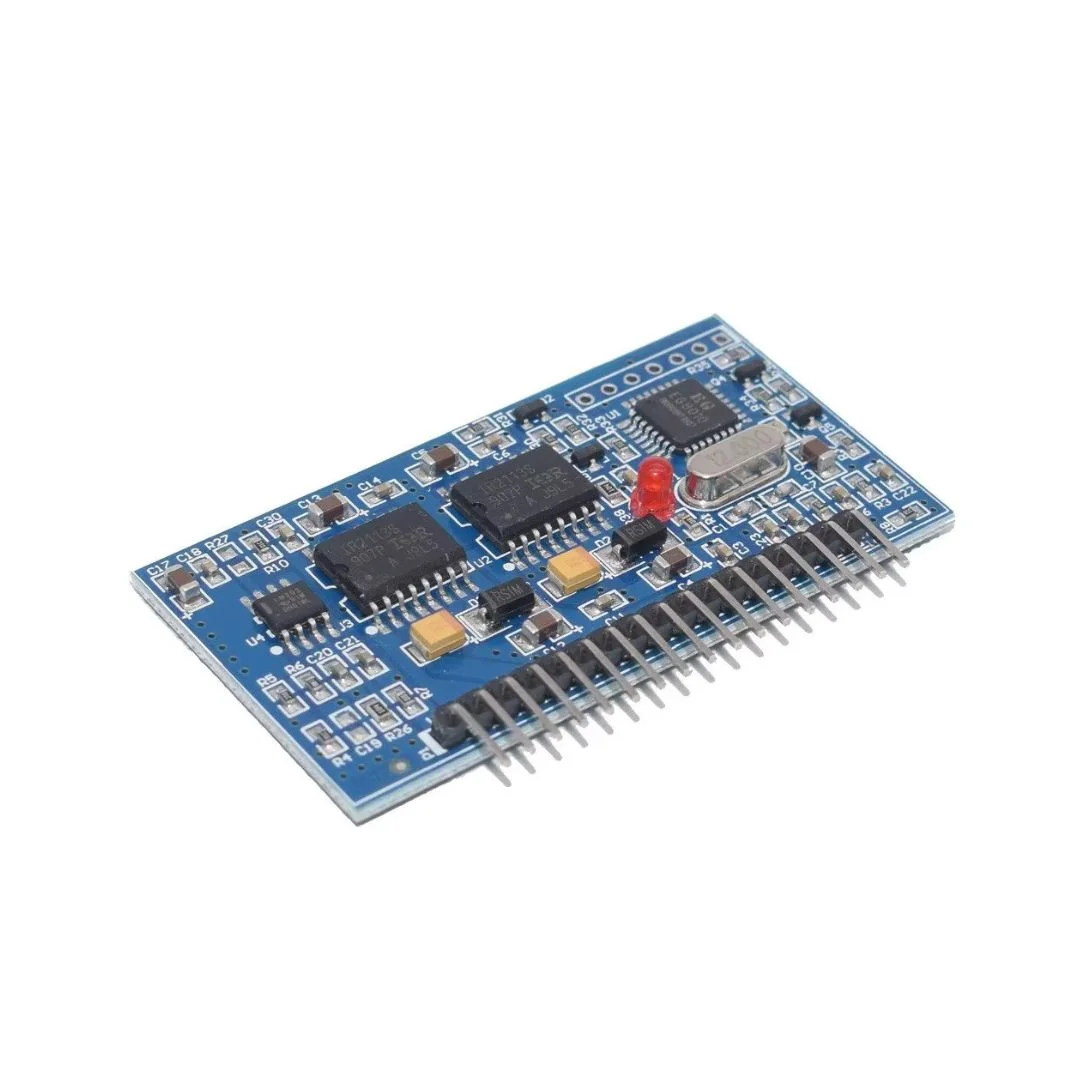

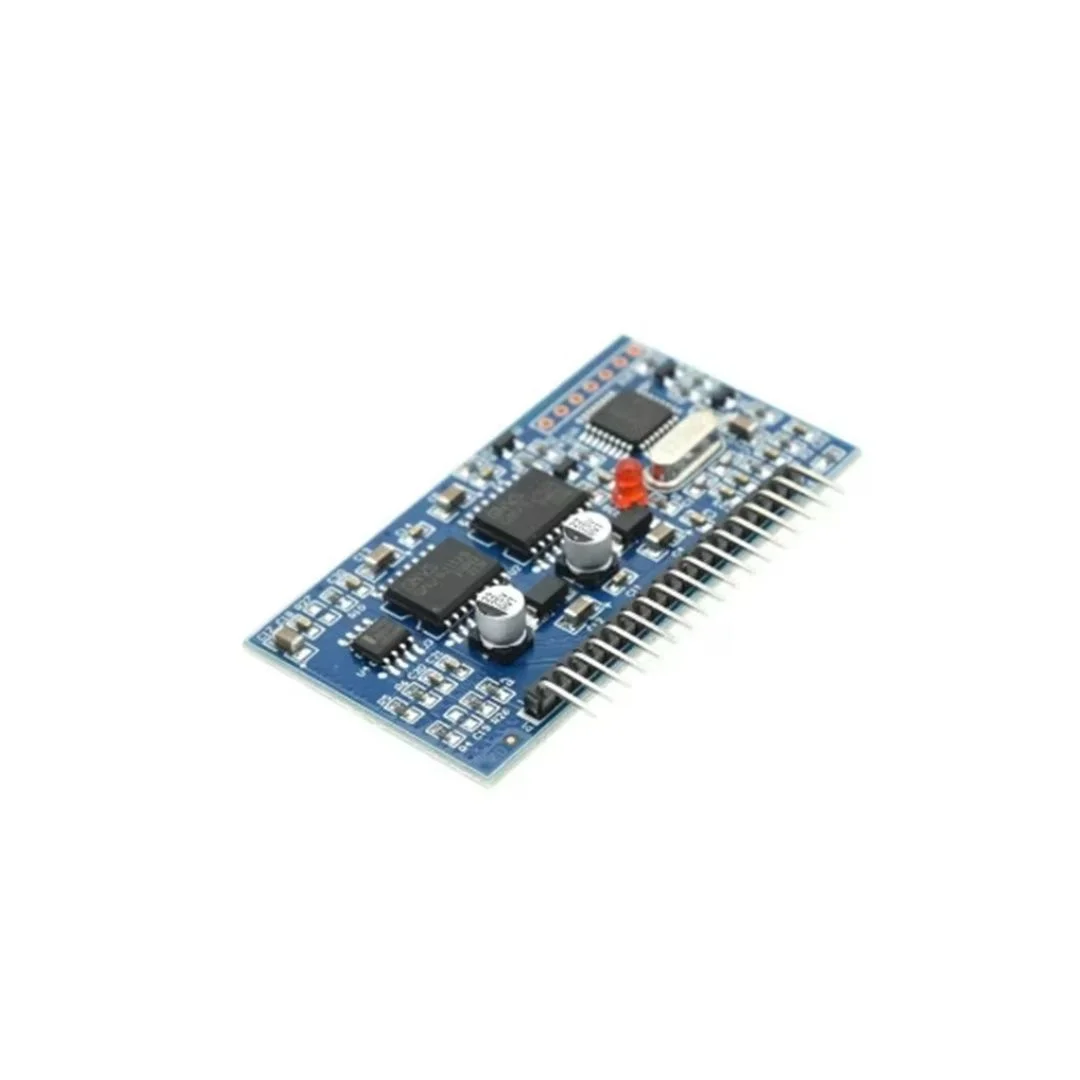

The EGS002 Pure Sine Wave Inverter Driver Module is a high-performance inverter control board designed to create stable and efficient pure sine wave AC output. Built around the advanced EG8010 DSP controller and dual IR2110 MOSFET driver ICs, this module ensures smooth waveform generation, high efficiency, and reliable inverter operation.

Perfect for DIY electronics enthusiasts, solar system builders, and professional inverter manufacturers, the EGS002 enables easy construction of 12V, 24V, or 48V DC to AC pure sine wave inverters.

Its intelligent protection system, soft-start capability, and selectable frequency make it ideal for long-term and safe power applications.

⭐ Key Features of EGS002 pure sine wave inverter driver

✅ Pure sine wave output using SPWM technology
✅ EG8010 digital inverter control processor
✅ Dual IR2110 high-speed MOSFET drivers
✅ Selectable 50Hz / 60Hz output frequency
✅ Supports 12V / 24V / 48V inverter systems
✅ Soft start for equipment safety
✅ Multiple built-in protections
✅ External LCD monitoring support
✅ Stable and efficient power conversion

⚙️ Specifications of EGS002 pure sine wave inverter driver

• Main Controller: EG8010 Pure Sine Wave DSP
• Driver ICs: IR2110
• Input Voltage: 12V / 24V / 48V DC (Configurable)
• Output Frequency: 50Hz / 60Hz Selectable
• PWM Type: SPWM (Sinusoidal Pulse Width Modulation)
• Protection:
  • Over-Voltage
  • Under-Voltage
  • Over-Current
  • Over-Temperature
• Soft Start: Yes

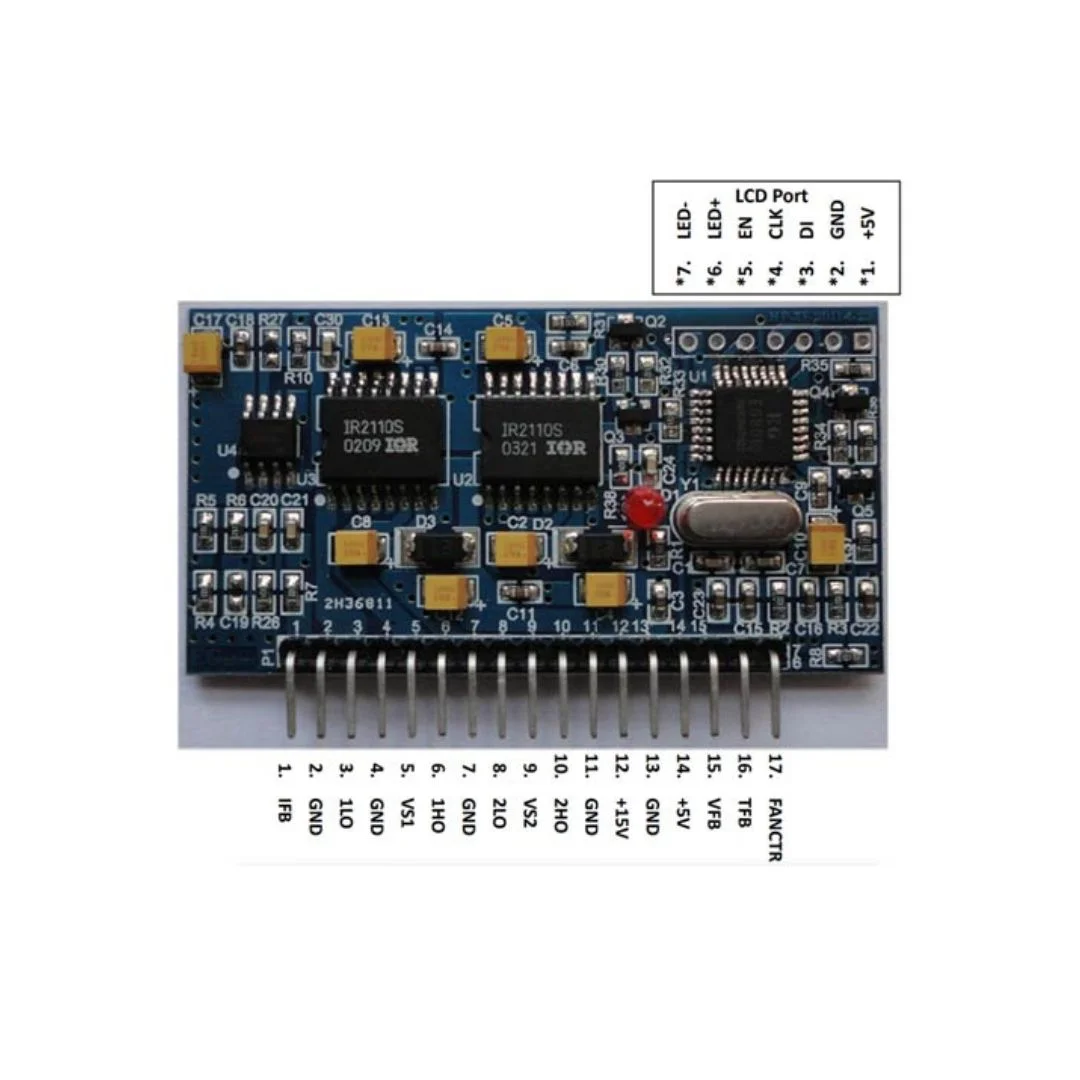

• Interface: External LCD & adjustment support
• Board Size: Approx. 70mm × 45mm

🔧 Applications of EGS002 pure sine wave inverter driver

• Pure Sine Wave Inverters
• Solar Power Systems
• UPS (Uninterruptible Power Supply)
• Motor & Pump Controllers
• Battery-Powered AC Systems
• Industrial Power Converters

🚀 Why Choose This Module?

Unlike modified sine wave drivers, the EGS002 inverter module produces clean and stable AC output, protecting sensitive electronics such as computers, fans, and appliances. Its DSP-based control ensures higher efficiency, lower noise, and professional-grade inverter performance.

Ideal for both DIY projects and commercial inverter builds.

👉 Explore more inverter components in our shop. Click  here.

👉 Watch inverter tutorials & projects:

✅ FAQs  about EGS002 Pure Sine Wave Inverter Driver Module

❓ 1. What is the EGS002 Pure Sine Wave Inverter Driver Module used for?

The EGS002 Pure Sine Wave Inverter Driver Module is used to build pure sine wave DC-to-AC inverters. It controls MOSFETs using SPWM technology to generate clean AC output, making it ideal for solar inverters, UPS systems, and battery-powered power solutions.

❓ 2. Which input voltages are supported by the EGS002 module?

The EGS002 inverter driver supports 12V, 24V, and 48V DC input systems. The voltage configuration depends on your inverter design and transformer setup.

❓ 3. Does the EGS002 provide protection features?

Yes, the module includes multiple built-in protections such as over-voltage, under-voltage, over-current, and over-temperature protection, ensuring safe and reliable inverter operation.

❓ 4. Can beginners use the EGS002 inverter driver module?

Yes. The EGS002 is widely used in DIY inverter projects because of its ready-to-use design, soft-start function, and LCD interface support. Basic electronics knowledge is recommended for proper installation.

❓ 5. What is the difference between pure sine wave and modified sine wave inverters?

Pure sine wave inverters produce smooth AC output similar to utility electricity, which is safer for sensitive electronics like computers, fans, and appliances. Modified sine wave inverters are less efficient and may cause noise or heating issues.
