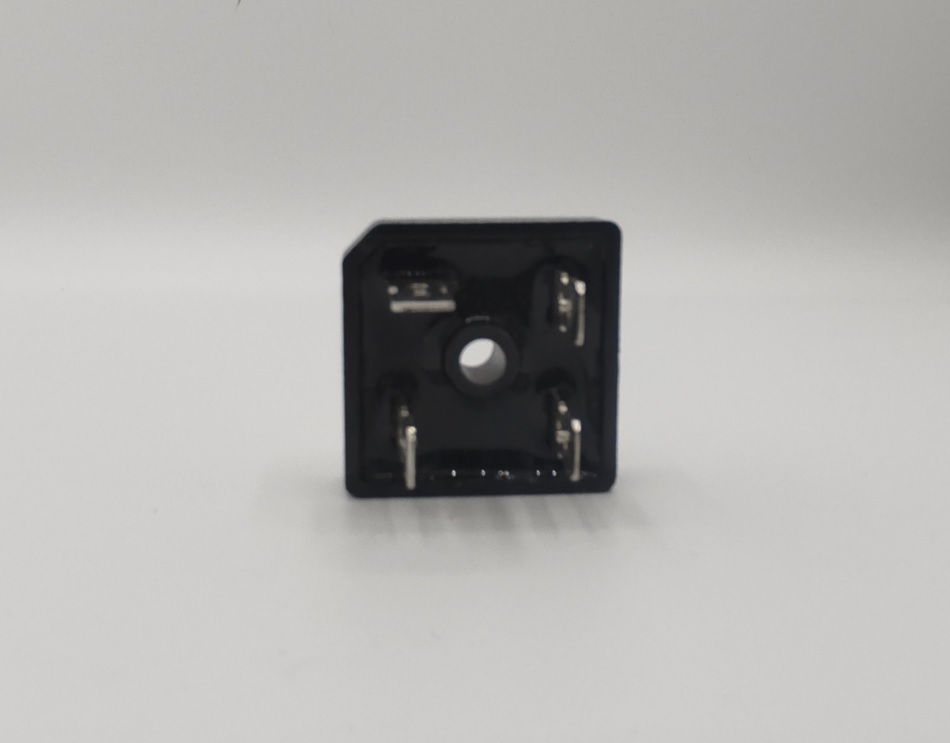

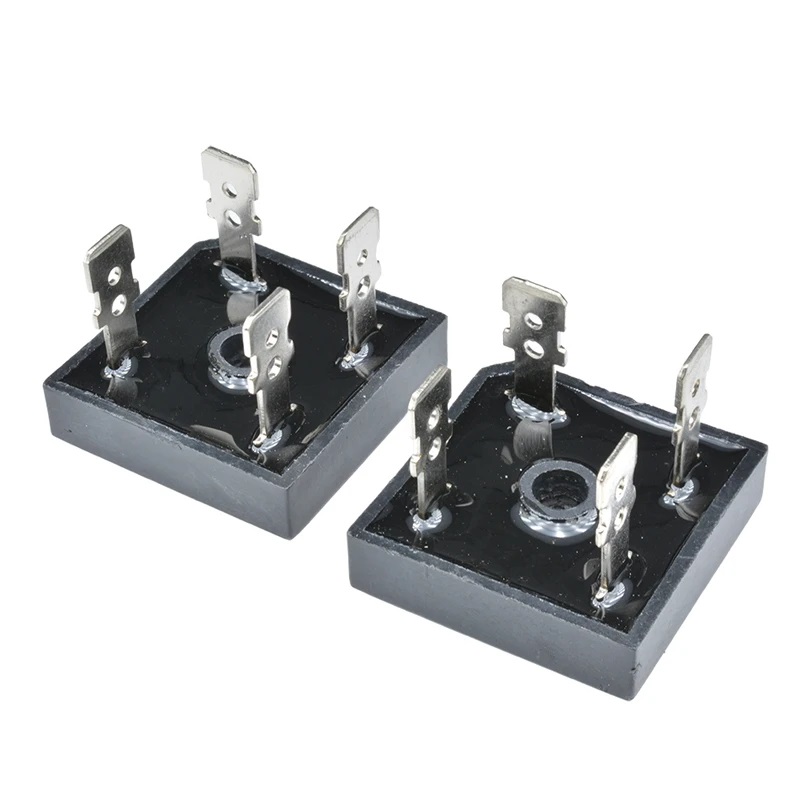

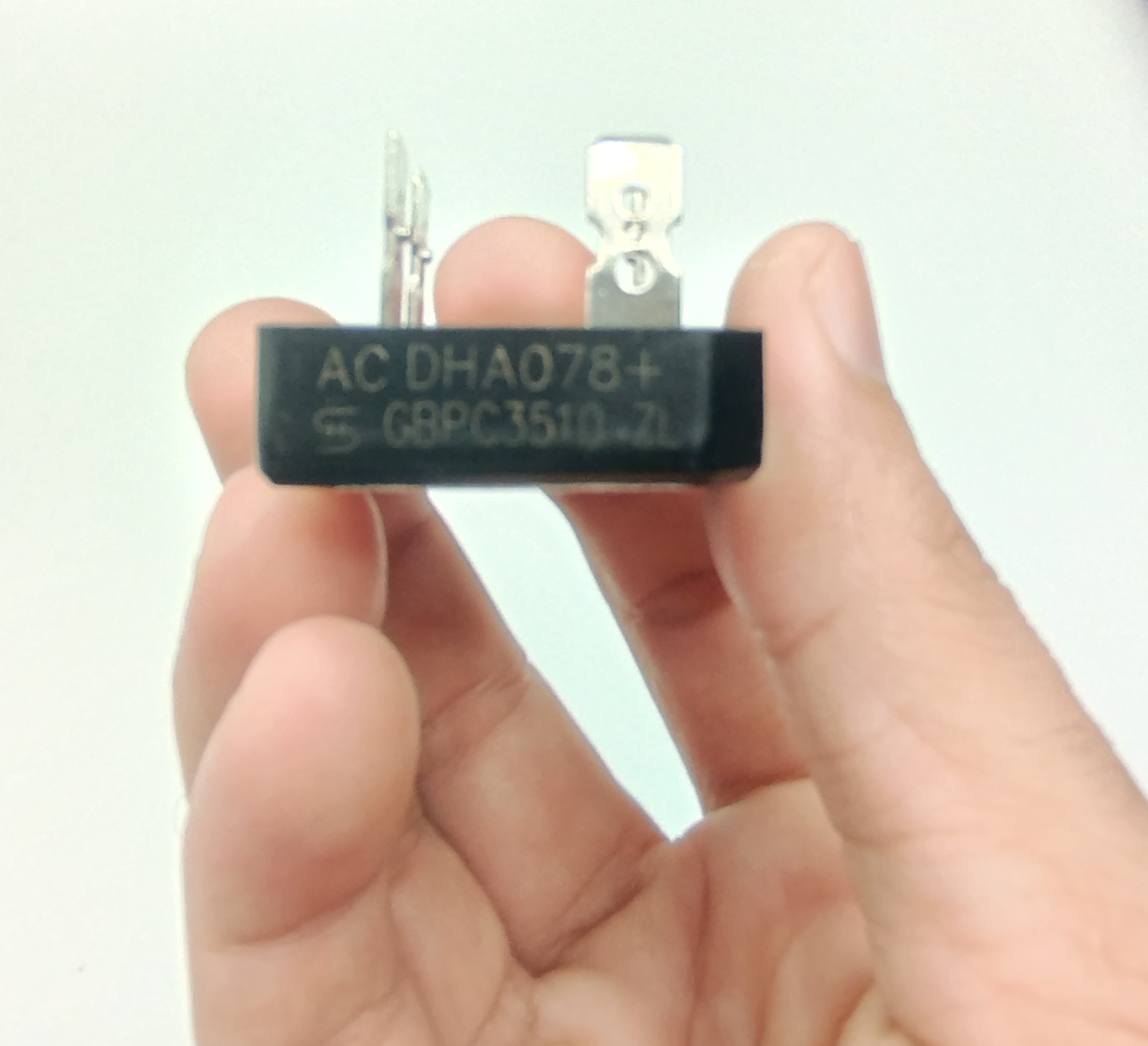

The GBPC3510 Bridge Rectifier Diode 35A 1000V is a powerful and reliable solution for converting AC voltage into stable DC power in demanding electronic applications. Built using high-quality silicon technology, this rectifier module is capable of handling high current loads up to 35 amperes, making it perfect for industrial power supplies, inverter systems, and heavy-duty electronic equipment.
This bridge rectifier belongs to the GBPC 35 Series by Taiwan Semiconductor, known for its high reliability, low thermal resistance, and strong surge current capability. The module includes an integrally molded heat-sink structure, allowing efficient heat dissipation and improved durability when operating under high load conditions.
With a maximum reverse voltage of 1000V and peak surge current up to 400A, the GBPC3510 ensures stable and efficient power conversion even in high-frequency switching environments such as SMPS and VFD inverter circuits.
The fast-on terminals allow easy installation and secure electrical connections, making it a popular choice among electronics engineers, DIY hobbyists, power electronics technicians, and repair professionals.
Whether you are building power supplies, battery chargers, DC motor drives, or industrial power control systems, the GBPC3510 bridge rectifier module delivers excellent performance and reliability.
✔ High Current Capacity 35A
✔ High Reverse Voltage 1000V
✔ Heavy Duty GBPC 35 Series Package
✔ 400A Surge Current Capability
✔ Fast-on Push Terminals for quick installation
✔ Excellent thermal performance with built-in heat dissipation
✔ Reliable silicon rectifier technology
| Specification | Value |
|---|---|
| Product Type | GBPC3510 Bridge Rectifier |
| Package Type | Through Hole |
| Series | GBPC 35 |
| Maximum Current | 35A |
| Peak Reverse Voltage | 1000V |
| Peak Forward Voltage | 1000V |
| Peak Surge Current | 400A |
| Chip Type | GPP |
| Terminals | Fast-on Push Terminals |
| Frequency | High Frequency |
| Material | Silicon, Metal, Plastic |
| Dimensions | 29 × 29 × 11.23 mm |
| Brand | Taiwan Semiconductor |
| Origin | China |
The GBPC3510 power rectifier diode is widely used in:
Heavy Duty Switch Mode Power Supplies (SMPS)
Power Factor Correction (PFC) Boost Circuits
DC Inverter Systems
Variable Frequency Drives (VFD)
Industrial Power Converters
Battery Charging Circuits
High Power AC-DC Conversion Systems
The GBPC3510 can handle up to 35 amperes of average rectified current, making it suitable for high-power electronic circuits.
It supports a maximum peak reverse voltage of 1000V, which is ideal for industrial power applications.
Yes, it is commonly used in SMPS, inverters, and high-power AC-DC conversion circuits.
For high current applications, attaching the rectifier to a metal heat sink or chassis is recommended to improve heat dissipation.
It features fast-on push terminals, allowing quick and secure wiring connections.
