₨5,499.00

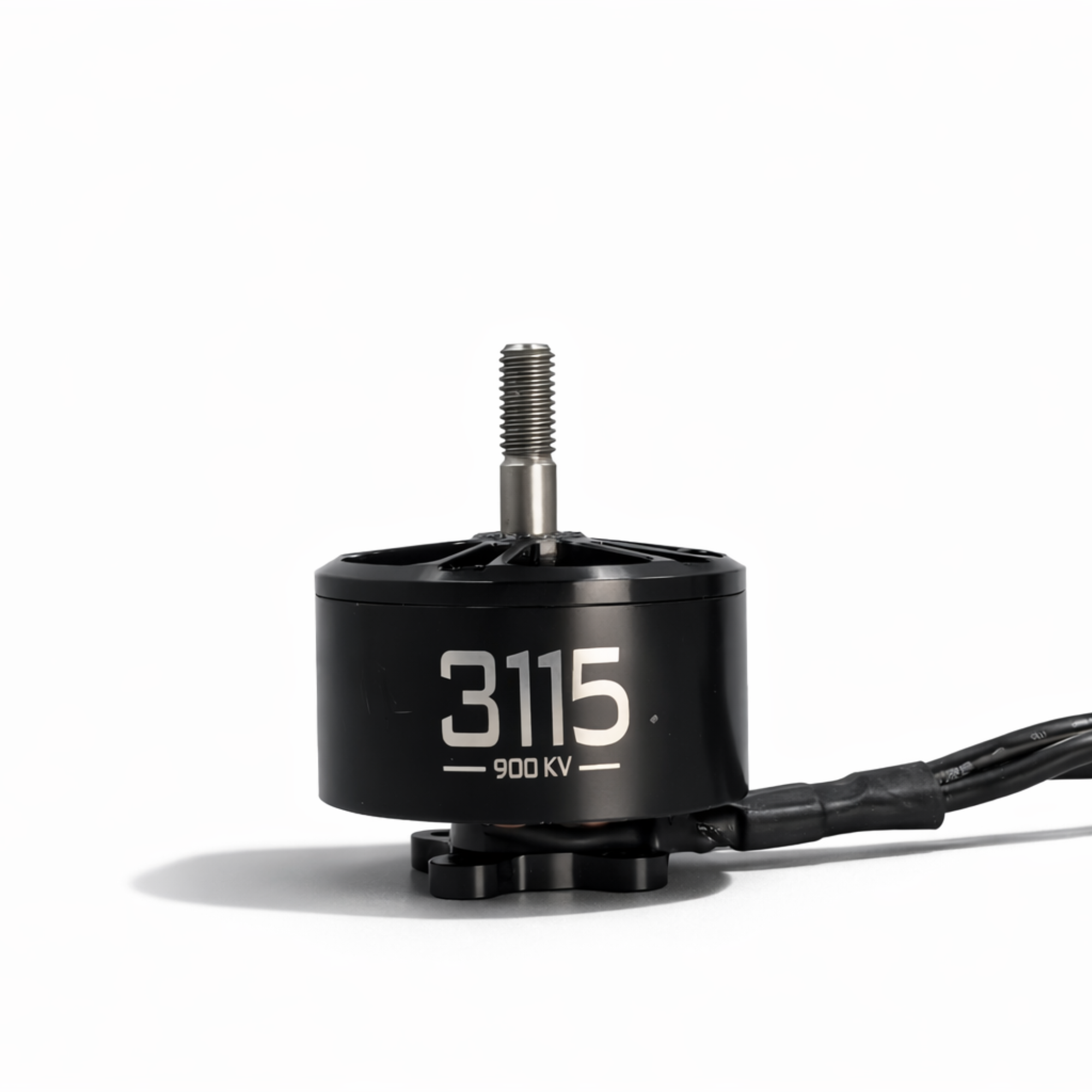

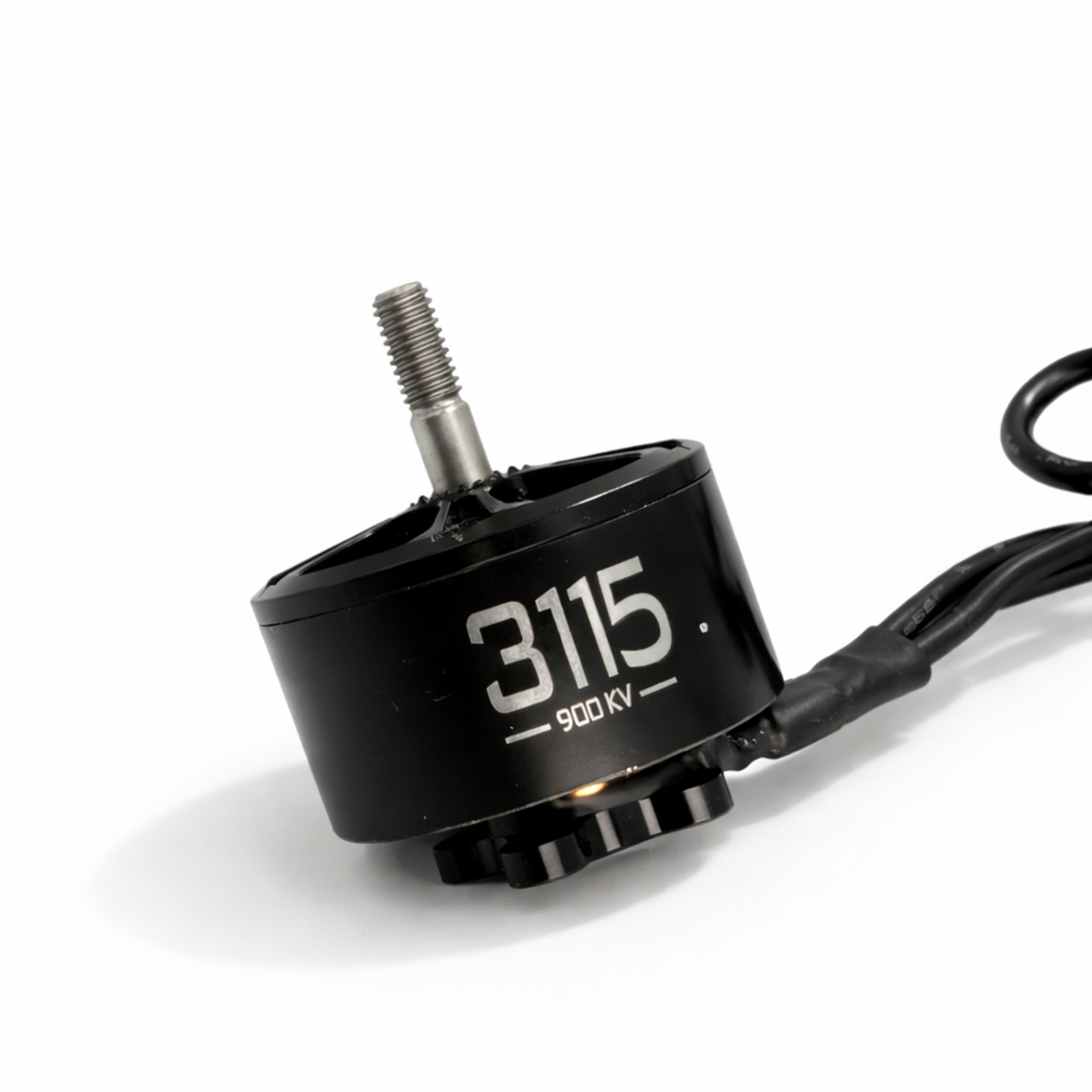

The S3115 900KV brushless motor is a high-performance, precision-engineered power solution designed for applications that require strong thrust, high efficiency, and mechanical accuracy. Engineered with a 12N14P stator configuration, this motor delivers smooth power output, excellent torque response, and reliable thermal performance across the entire throttle range.
Built to professional standards, the S3115 900KV combines electrical efficiency with accurate mechanical dimensions, making it ideal for industrial UAVs, heavy-lift multirotors, and professional aerial platforms where reliability and consistency are critical.
| Parameter | Specification |
| KV Rating | 900 KV |

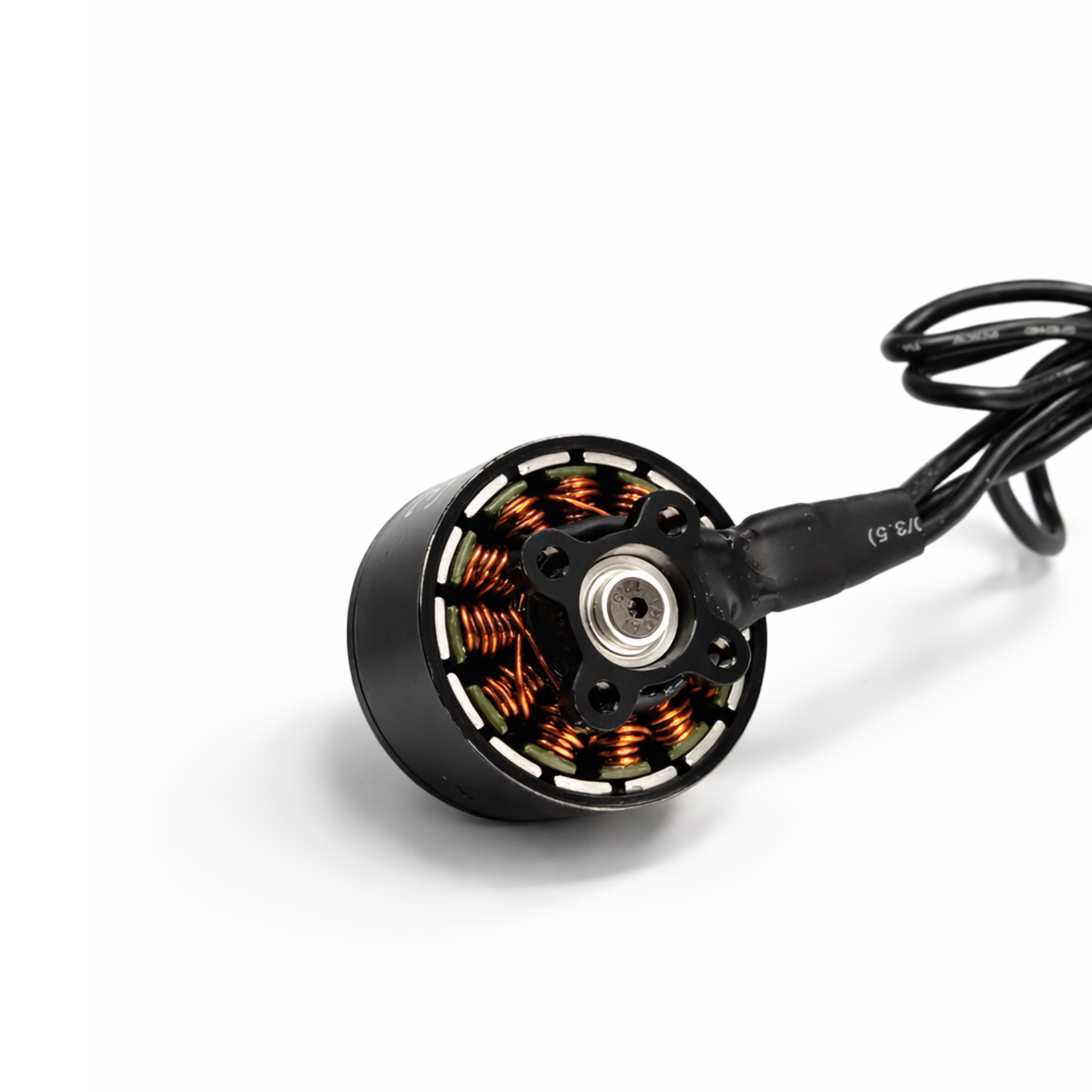

| Motor Configuration | 12N14P |
| Max Power | 1896 W |
| Max Current | 81.39 A |
| No-load Current | 1.4 A |
| Internal Resistance | 42.5 mΩ |
| Max Thrust (GF1050-3) | Up to 4622 g |
| Recommended Propeller | GF1050-3 |
| Weight | ~113 g |

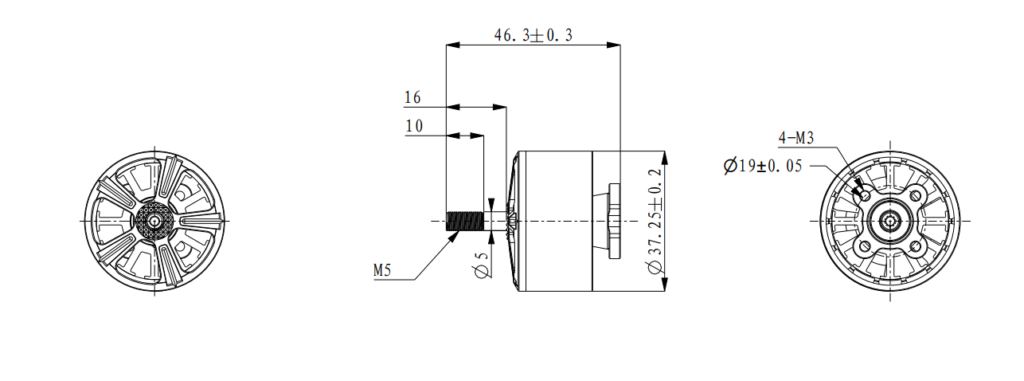

| Parameter | Specification |
| Motor Size | Ø37.25 × 46.3 mm |
| Motor Body Diameter | Ø37.25 ± 0.2 mm |
| Overall Length | 46.3 ± 0.3 mm |
| Stator Size | Ø31 × 15 mm |
| Shaft Diameter | Ø5 mm |
| Shaft Thread | M5 |
| Front Shaft Steps | 10 mm / 16 mm |
| Mounting Holes | 4 × M3 (Rear) |
| Center Locating Diameter | Ø19 ± 0.05 mm |
Ideal Applications
Heavy-lift multirotor drones
Industrial and commercial UAVs
Aerial photography & cinematography platforms
Mapping, surveying, and inspection drones
High-efficiency and long-duration flight setups
